Trains & subways

Optimizing rolling stock operating costs and improving safety and passenger services are major challenges for operators. To meet these challenges, the number of on-board electronic devices has increased considerably in recent years, as has the volume of data to be transported. WiFi has rapidly established itself as a reliable, high-performance solution enabling operators to achieve several key objectives.

Automatic loading/offloading of data at stations or depots

The integration of advanced electronic equipment and WiFi enables more efficient management and reduced operating costs. Operators can automatically load and offload data at stations or depots, eliminating the need for numerous manual interventions and reducing downtime. What’s more, predictive maintenance based on data collected in real time helps to anticipate and prevent breakdowns, thus reducing repair costs and service interruptions.
For metro systems, this mainly involves the massive downloading of on-board videos.
Broadband connection is also used to upload on-board software updates from the ground to the rolling stock (MRO).

Real-time data transfer from train to ground

Safety is a crucial aspect of rail transport. Thanks to WiFi, train data, passenger intercom, passenger information, passenger counting and CCTV images can be transferred in real time to the centralized control station (OCC) via the ground multiservice network (MSN). This enables constant, proactive monitoring, increasing the ability to react in the event of an incident. Information on the status of on-board equipment (including rolling stock TCMS) and maintenance alerts can also be transmitted instantaneously, enabling rapid, targeted intervention.

Enhanced passenger services

Passengers benefit directly from the improvements brought about by the use of WiFi and advanced electronic equipment. Passenger Information Systems (PIS) can be updated in real time, providing accurate, up-to-date information on schedules, connections and possible delays. In addition, on-board WiFi allows passengers to stay connected, which has become an expected and appreciated service, enhancing the overall travel experience.

ACKSYS Communications & Systems has been a pioneer in rail WiFi, developing high-performance roaming solutions. Its WiFi access points have proven their performance and reliability on trains and subways worldwide, used both on-board (EN 50155) and on the ground (EN 50121-4). This range has now been completed by LTE 4G and 5G cellular routers dedicated to rail, offering even more robust and extensive connectivity. On-board LTE radio equipment is used in particular on metro lines (RER) and regional trains (TER).

Points forts
PRODUCTS DESIGNED FOR RAILWAYS
  • ACKSYS is IRIS certified
  • IP66 aluminum enclosure
  • MTBF > 40 years
  • M12 Ethernet and power connectors
  • QMA antenna connectors
  • IPC 610 class 3 manufacturing process
  • EN 50155 (on-board) and EN 50121-4 (wayside)
SECURE & HIGH-PERFORMANCE WIFI COVERAGE
  • Passenger network separated from service network (VLAN, QoS/WMM, tunnel, firewall)
  • Simultaneous dual WiFi 2.4/5 GHz
  • Maximum 512 clients per radio
  • 802.11ax broadband
  • WPA2/WPA3, 802.11i, 802.1x authentication radius, Rogue AP detection
  • Load balancing
  • Band steering
  • Client roaming control
  • Association control per SSID
  • Passpoint/Hotspot 2.0
DUAL RADIO PRODUCTS
  • Car-to-car coupling and onboard WiFi coverage
  • Simultaneous transmission on 2.4 and 5 GHz bands
  • WiFi + cellular with automatic switchover
PRODUCTS FOR MULTIPLE ARCHITECTURES
  • Bypass option for Ethernet “Daisy Chain” topologies
  • On board: dual-radio APs
  • On the ground: triple radio APs
  • 24-110 VDC or PoE power supply
DIRECT CONNECTION TO TRAIN POWER SUPPLY
  • Dual isolated power supply input 24-110 VDC
SIMPLIFIED MAINTENANCE
  • Configuration stored on a removable key
  • Centralized management software WaveManager
WAVEMANAGER CENTRALIZED MANAGEMENT TOOL
  • Simplified deployment
  • Equipment monitoring
  • Preventive maintenance
  • Cloud and on-premise version
5-YEAR WARRANTY INCLUDED
Products
Certifications :
Logiciel d'administration WaveManager

WaveManager is a centralized tool that simplifies the supervision of an infrastructure using ACKSYS products, making the network administrator’s job easier.

It lets you configure, monitor, troubleshoot and manage network deployments of ACKSYS equipment, either locally or remotely.

  • Centralized administration
  • Simplified deployment and configuration
  • Single or grouped parameterization and updates
  • Complete equipment monitoring: geolocation, tracing, alarms, graphical representations
  • Security: user management, passwords, HTTPS certificates
  • Preventive maintenance: real-time monitoring and recording of indicators (signal level and quality, roaming thresholds, channel congestion, throughput, latency, etc.) to anticipate and prevent unexpected breakdowns
WaveManager : Logiciel d’administration ACKSYS

TER RENOVATION

ACKSYS has won SNCF's Train Digital-Marché 6 tender to equip renovated TER trains with inter-rail WiFi modules. These modules create a complete IP network on board the trains, enhancing connectivity and safety. ACKSYS' SRCC solution, based on wireless couplers, has been installed in the Grand Est, Occitanie, PACA and CVDL regions. Télécharger

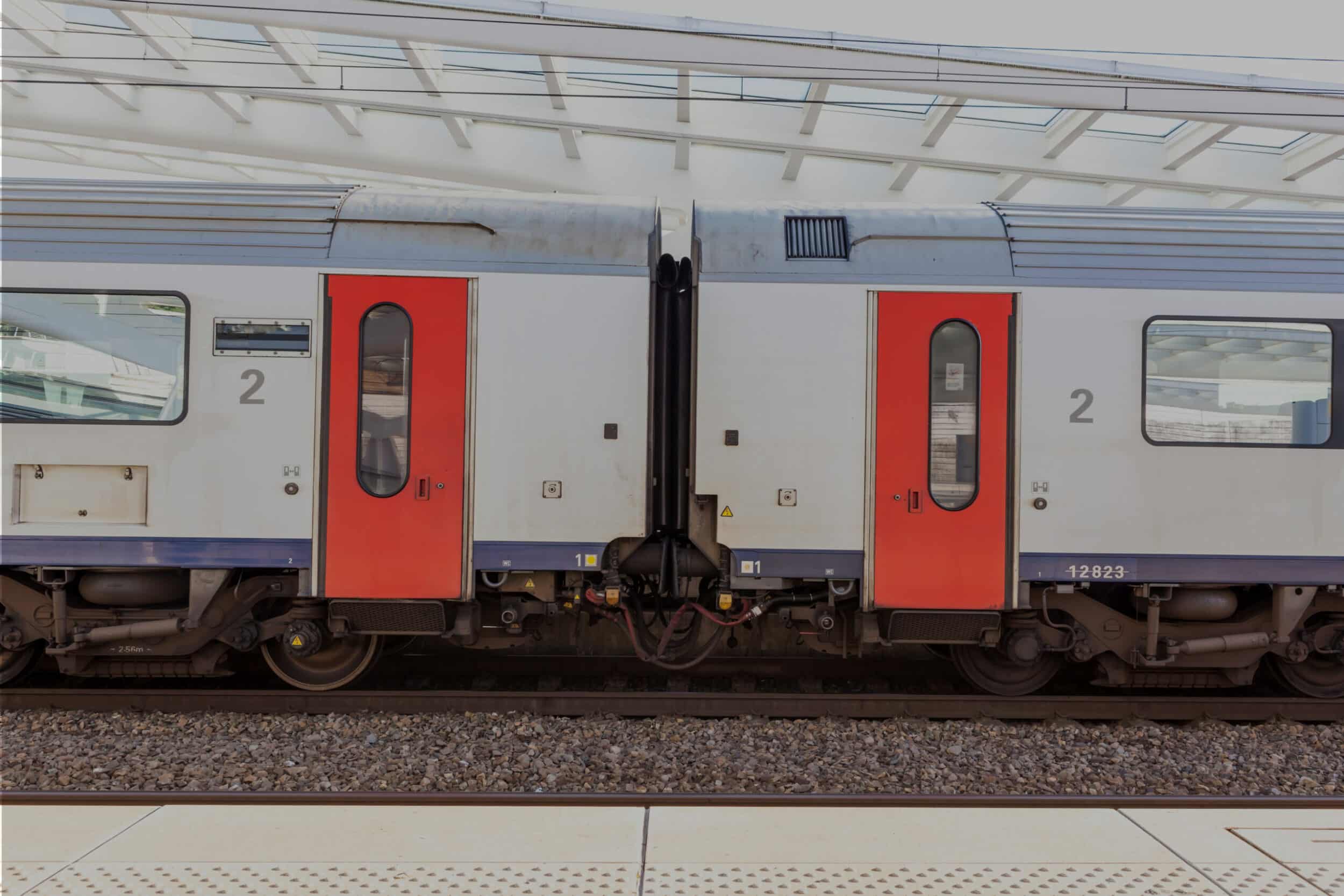

Car to car coupling system and in car radio coverage
