WiFi access point, 3-port Ethernet bridge & repeater (WDS)

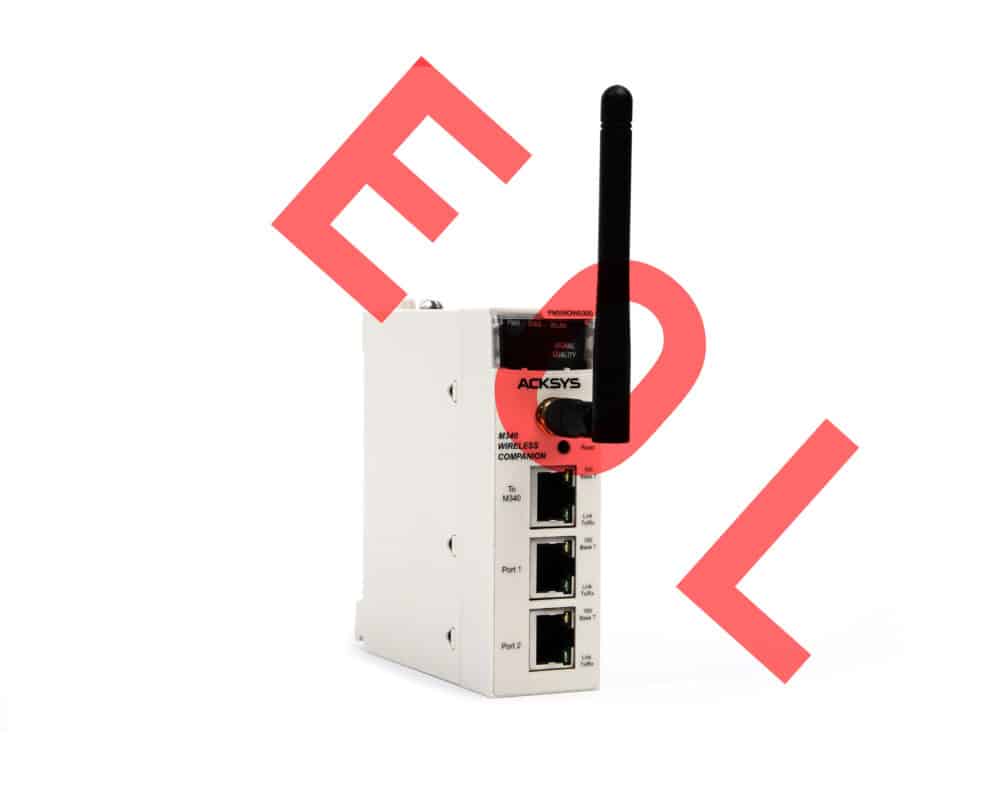

NOTE : PMXNOW0300 has reached the end of its life cycle (to know more about its different deadlines click here)

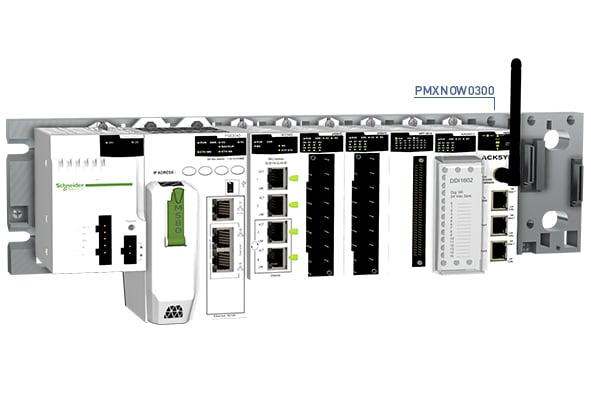

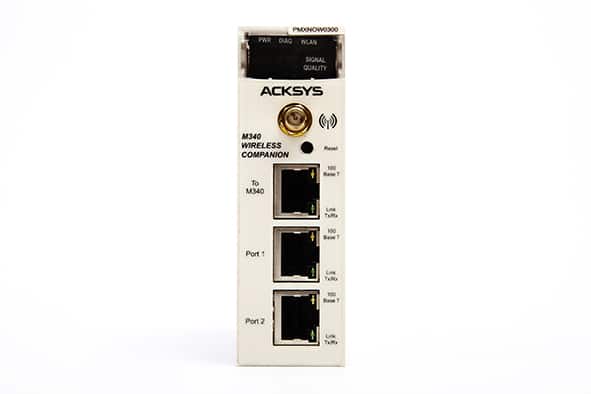

PMXNOW0300 is a single slot backplane compatible module that allows the M340/M580 processors to interface easily with the WiFi wireless network in order to communicate with devices located remotely.
It can be used either as access point to create the wireless network infrastructure, bridge to connect network equipments or even as repeater to extend the wireless network coverage.
The module offers point to point or point to multipoint communication schemes and supports all Ethernet based protocols including MODBUS/TCP & Ethernet/IP.
Thanks to its built-in WEB interface, the setup of the module is easily achieved using any web browser, module also offers SNMP and NDM (Network Device Manager) configuration and administration.
|
Ethernet link |
3-port Ethernet 10/100 auto-sensing, plug & play mode & auto MDI/MDIX cross-over
|
||
|
WiFi network |
Compliant to the IEEE 802.11a/b/g/h 2.4 / 5 GHz standards, multi-country Roaming support (IEEE 802.11d); Dynamic Frequency Selection (DFS) support provides flexible selection of best frequency to allow mobility among existing networks; “ClearVoice” band provides non-overlapping channels for fast data transmission; Transmission Power Control (TPC) offers flexibility to adjust RF output power.
|
||
|
Data rate |
Up to 108 Mbps (Super AG mode)
|
||
|
Channels |
2.4 GHz (802.11b/g): 14 channels / 5 GHz (801.11a/h): 24 channels
|
||
|
Output power |
Transmitter +20 dBm (100 mW) with Transmit Power Control (TPC)
|
||
|
Sensitivity |
Receiver -92 dBm for IEEE 802.11 a/g and -95 dBm for IEEE 802.11b
|
||
|
Antenna |
2dBi 2.4 & 5 GHz antenna, RP-SMA connector
|
||
|
Modulation |
OFDM: BPSK, QPSK, 16QAM, 64QAM and DSSS: DBPSK, DQPSK, CCK
|
||
|
Security |
64/128 bits WEP, WPA-PSK, WPA2-PSK, IEEE 802.11x (RADIUS authenticator & supplicant), MAC addresses filtering, SSID broadcast control
|
||
|
Modes |
Access point to build a WiFi network infrastructure, Bridge to connect any Ethernet, MODBUS/TCP or Ethernet/IP equipments to this network, repeater (WDS), infrastructure, AD-HOC, bridge router & fast roaming (less than 50 ms) modes are supported
|
||
|
Administration |
Thanks to its built-in WEB interface, the setup of the device is achieved using any web browser installed on your computer (Internet Explorer, Netscape, Mozilla …), SNMP agent, ACKSYS NDM
|
||
|
Signaling |
LEDs signaling for LAN, WLAN network activity, 10/100 mode and RF level
|
||
|
Power Supply |
Powered from M340/M580 +24VDC backplane
|
||
|
Consumption |
3.5 W typical power consumption
|
||
|
Hot swap |
Module is hot swappable during operation for simplified maintenance
|
||
|
Dimensions & weight |
Small sized enclosure L: 97 x W: 32 x H: 104 mm, weight 200 g
|
||
|
Environment |
Operating temperature: -20°C to +70°C (HR 5-95% non-condensing), storage: -40°C to +80°C
|

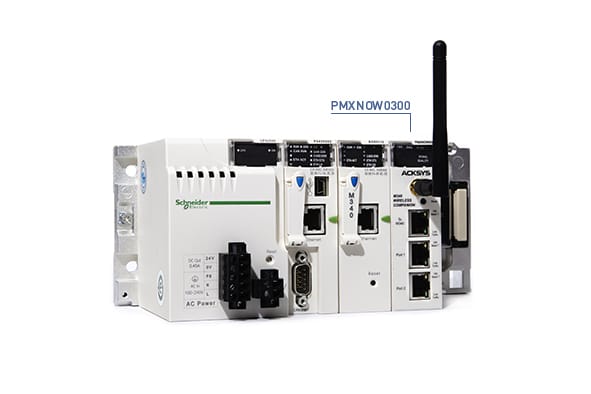

| The M340 / M580 acts as a modbus-tcp server. VijeoCitect and UnityPro software are modbus-tcp clients. In that case the Ethernet port of the M340 / M580 CPU is connected to the PMXNOW0300 wireless module and there is no need for an extra BMX NOE in-chassis module. |
| In this network architecture, we take the benefit of the embedded Ethernet switch capabilities of PMXNOW0300 to connect up to 3 x M340 / M580 PLCs together. There will be no need for an external Ethernet switch. |
| In the use case pictured above we want to read and/or write some of the process data values both ways. We can use the READ_VAR / WRITE_VAR function blocks just like if both PLCs were connected on an Ethernet cable. We do not need any extra BMX NOE in chassis module. |
| Global Data requires a BMX NOE to be connected to the PMXNOW0300. |
