Serial link

Full RS232 / 422 / 485 serial interface, 250 Kbps

RS signals available

RS232 mode: TxD, RxD, RTS, DTR, CTS, DCD, DSR, RI

RS422/485 mode: -Tx, +Tx, -Rx, +Rx (+RX and –RX signals can be polarized with jumpers)

Cables connection

SUB D9 male connector for RS signals, 5-point removable terminal block for RS422/485

WiFi network

Compliant to the IEEE 802.11a/b/g/h 2.4 / 5 GHz standards, multi-country Roaming support (IEEE 802.11d); Dynamic Frequency Selection (DFS) support provides flexible selection of best frequency to allow mobility among all existing IEEE 802.11a/b/g/h networks; « ClearVoice » band provides non-overlapping channels for fast-speed data transmission; Transmission Power Control (TPC) offers flexibility to adjust RF output power, based on the ATHEROS’s AR5414 (AR5006XS) chip-set, single channel rapid roaming (

Radio data rate

Up to 108 Mbps (Super AG mode)

Channels

13 channels (b/g modes), 8 channels (a mode), 11 channels (h mode)

Output power

Transmitter +20 dBm (TPC)

Sensitivity

Receiver -92 dBm for IEEE 802.11 a/g and -95 dBm for IEEE 802.11b

Antennas

Two 2 dBi bi-band external antennas, RP-SMA connector

Modulation

OFDM: BPSK, QPSK, 16QAM, 64QAM

DSSS: DBPSK, DQPSK, CCK

Security

64/128 bits WEP, WPA-PSK, WPA2-PSK, IEEE 802.1x (RADIUS)

Modes

Support for TCP Client/Server, DHCP Client, TELNET RFC2217 extension, Telnet Server, COM port re-director (VIP), multipoint or point to point virtual link over UDP modes and MODBUS/TCP Client/Server, MODBUS/RTU & MODBUS/ASCII protocols, direct communication (ad hoc) or from access point

Administration

Thanks to its built-in WEB interface, the setup of the device is achieved using any web browser installed on your computer (Internet Explorer, Netscape, Mozilla …), SNMP agent, ACKSYS NDM, TELNET from the serial link

Operating systems

Windows, Linux, UNIX as well as any operating system supporting TCP/IP

Signaling

Led display for power supplies, serial & WLAN activity, radio receive level

Alarms

Relay output warning: power failure, WLAN connection failure, Watchdog.
1 FORM B solid state relay, 60V 0.15A, contacts on removable clamp cage terminal

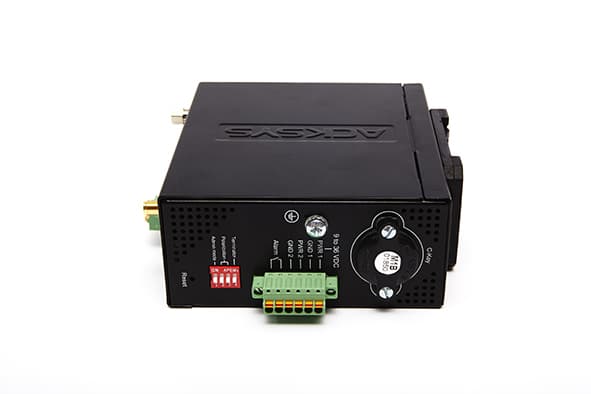

Power supply

Dual input, +9 to +36VDC

Consumption

4.5 Watts typical

Dimensions & weight

Shockproof & vibration proof metal enclosure (L: 110 x W: 50 x H: 120 mm), 550 g

Standards

MIL-STD-810F, 514.5 & 516.5 methods (shocks & vibrations)

EN 301489-17 & EN 61000-6-2 (CEM)

Environment

Operating temperature: -25°C to +70°C (-4°F to 158°F), storage: -65°C to +100°C (-85°F to 212°F),
Humidity: 5% to 95% (non-condensing), IP 30 seal rating
