Industrial wireless router : ready to use dual-radio module

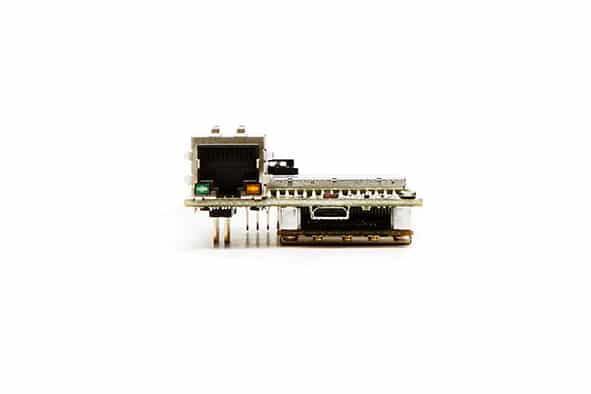

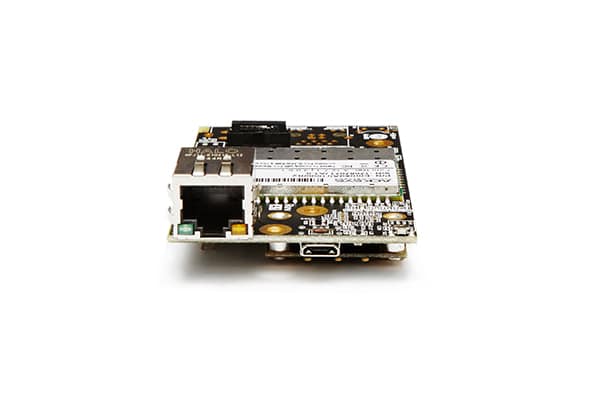

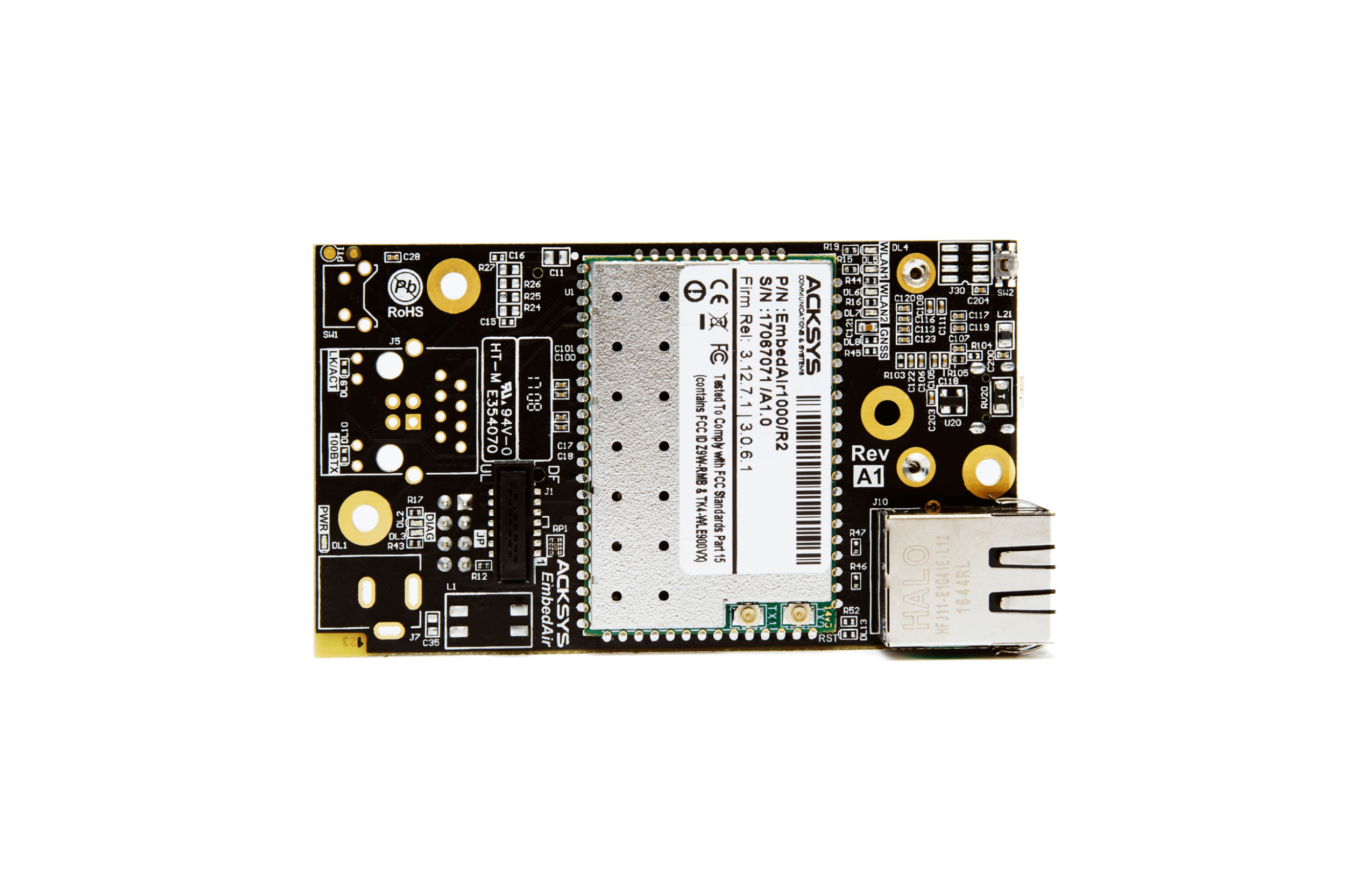

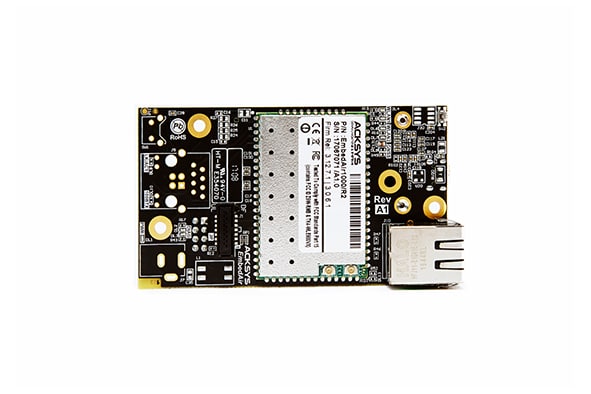

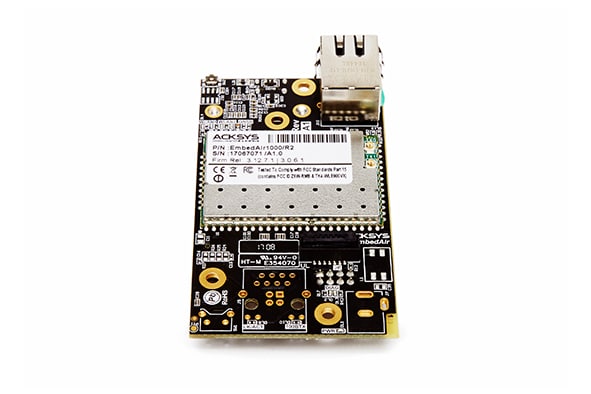

EmbedAir1000 module by ACKSYS is designed to quickly and easily add an WiFi connectivity to any Ethernet equipment or simply to allow you to build your own industrial WiFi device.
Ready to use standalone, requiring no external software or drivers, EmbedAir1000 reduces dramatically development costs, shorten time to market and guarantees the sustainability of your device. Its long-term availability will ensure you solid returns from investment and allow you to restrict costly operations like design and certification, unlike most commercially available modules on the market.
EmbedAir1000 is an extremely compact state-of-the-art solution and supports WiFi access point, client, repeater & MESH point modes. These functions can be operated simultaneously. EmbedAir1000 offers routing, filtering and advanced security features including 802.11i (EAP authentication with Radius server/WPA/WPA2 Enterprise), tunnels with fully encrypted data, firewall, VLAN…
Its high-speed 802.11n + 802.11ac WiFi interfaces support any kind of Ethernet based protocols such as UDP, TCP, Profi net, Modbus/TCP, Safe Ethernet, Ethernet IP…
EmbedAir1000 meets the industrial requirements (shocks, vibrations, large temperature range, long-lasting product design…) of applications such as onboard computers, CCTV, medical equipment, mining equipment, military DCE, explosion proof devices… Its fast roaming feature (<30ms) makes it also ideal for any kind of mobile applications such as AGVs for example.
| Ethernet interface | 1-port Gigabit Ethernet 10/100/1000 Base TX auto-sensing, auto MDI/MDIX cross-over, RJ45 or TTL Ethernet interface (HE10 connector) |
| WiFi interfaces | WiFi 1 : 802.11a/b/g/n, MIMO 2T2R, 2.4 / 5 GHz, ANI (Adaptive Noise Immunity) WiFi 2 : 802.11a/b/g/n/ac, MIMO 3T3R, 2.4 / 5 GHz, ANI (Adaptive Noise Immunity) |
| WiFi radio data rate | WiFi 1 : 802.11a: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 and 54 Mbps 802.11n: MCS0-7, 2 streams (6.5 to 300 Mbps) WiFi 2 : 802.11a: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 and 54 Mbps 802.11n: MCS0-7, 3 streams (6.5 to 450 Mbps) 802.11ac: MCS0-9, 3 streams (6.5 Mbps to1.3 Gbps) |
| Operating frequencies | ISM : 2.4-2.483 GHz (up to 14 channels) UNII : 5.15-5.25 GHz (up to 4 channels) UNII-2 : 5.25-5.35 GHz (up to 4 channels) UNII-2 ext : 5.470-5.725 GHz (up to 11 channels) UNII-3 : 5.725-5.825 GHz (up to 4 channels) Supports DFS and TPC |
| Output power | WiFi 1 : 2.4 GHz : up to 23.5 dBm (aggregate) / 5 GHz : up to 21 dBm (aggregate) WiFi 2 : 2.4 GHz : up to 23.8 dBm (aggregate) / 5 GHz : up to 22.8 dBm (aggregate) |
| Sensitivity | WiFi 1 receiver : -92 dBm for 802.11 b/g/n and -96 dBm for 802.11a/n WiFi 2 receiver : -94 dBm for 802.11 b/g/n and -93 dBm for 802.11a/n/ac |
| Antennas | WiFi 1 : 2 Hirose UFL connectors WiFi 2 : 3 Hirose UFL connectors |
| Security | Firewall, DoS, https, MAC filtering, WPA/WPA2-Personal & Enterprise (IEEE 802.1X/RADIUS), WEP, tunnels L2 (GRE), VPN (OpenVPN), SNMP V3 |
| WiFi modes | Access point, client, MESH (IEEE 802.11s), SRCC (Smart Redundant Carriage Coupling), infrastructure, AD-HOC, fast roaming (less than 30 ms), WMM QoS |
| Ethernet networking | Frames filtering, bridging, repeater, STP/RSTP, VLAN, DHCP (server & client), DNS relay |
| Ethernet routing | Multicast (PIM), IP redundancy (VRRP), static routes, NAT router, router |
| Administration | http, https, SNMP agent (V1, V2C, V3), WaveManager administration software |
| LEDs signaling | Radio : activity – status | Ethernet : link 10/100/1000 – activity | Power : on-off |
| Power supply | +5VDC on an HE10 connector or micro USB (1.2A mini / 2.5A recommended) |
| Consumption | 5.7 Watts typical, 13.6 Watts maximum (dual radio mode) |
| Dimensions & weight | Small sized PCB L : 89 x l : 51 x h : 28 mm, 45 g |
| Standards | WiFi 1 : CE (RED) and FCC (FCC ID : Z9W-RMB) certified. WiFi 2 : CE (RED) and FCC (FCC ID : TK4WLE900VX) certified. |
| Environment | Operating temperature : -40 to +70°C, storage -40 to +85°C Humidity : 5% to 95% (non-condensing) |
| Warranty | 1 year |
| EmbedAir1000/R2 | WiFi module (11n 2T2R + 11ac 3T3R) RJ45 Ethernet interface (delivered without antenna nor pigtail cable) |
| EmbedAir1000/T2 | WiFi module (11n 2T2R + 11ac 3T3R) TTL Ethernet interface (delivered without antenna nor pigtail cable) |

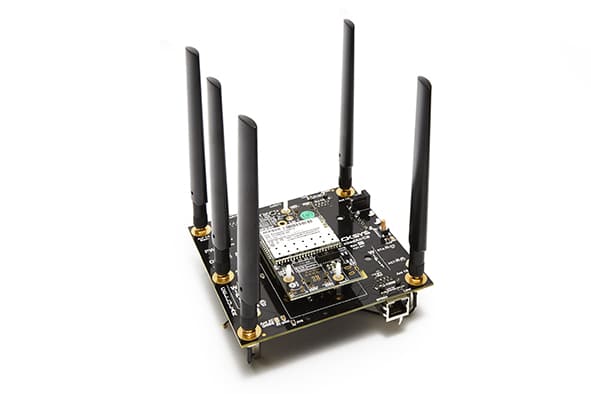

| EmbedAir/CB | Evaluation board with antennas and power supply included. EmbedAir100 or EmbedAir1000 module must be ordered with. |
| Additional accessories : | |
| WL-KIT-ANT-1C | Flat & swivel omnidirectional antenna, RPSMA, 2.4 GHz 3dBi gain / 5 GHz 4dBi gain with pigtail cable (14 cm, ø 1.37 mm, UFL to RPSMA) |
| Version | Download | |
|---|---|---|
| WaveOS firmware upgrade package, release notes It is recommended to save your configuration to a PC prior to upgrade the firmware |
4.28.1.1 vx241004 |
BINHASH |
| MIB (SNMP) |
3.24.0.1 vx241004 |
|
| WaveOS : Download the user guide |
– |
 |
| 4G cards firmware update package |
6.3 vx181025 |
|
| [FirmTabName] | Version | Download |
|---|---|---|
| WaveManager : Deployment & centralized management software for WaveOS-based WiFi products, Windows and Linux platforms | 3.6.0.1 | |
Supplementary catalog (graphic resources): download required | 1.6.0.1 | |
| Download the user guide | – | |
